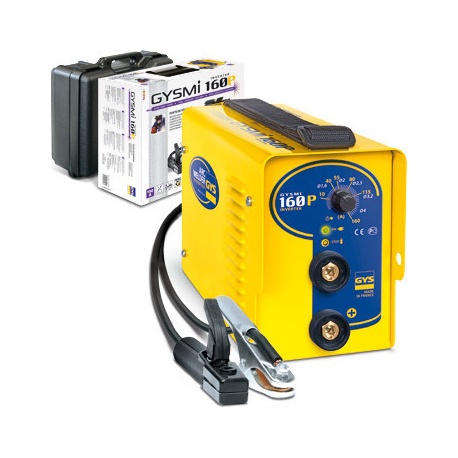

GYS Gysmi 160P  features

Welding machine equipped with the latest technology for a higher quality arc

Single phase alimentation, 230V

Protected against overvoltage up to 400V (PROTECT -400)

Protected against power supply fluctuations (Generator) (+/-15%)

Welds a wide range of electrodes : 1,6 - 4 mm

Steel, Stainless Steel, Cast Iron

Welds metal sheets up to 10 mm

Welding current adjustable from 10 to 160 A

Efficiency

At 40^oC (EN60974-1): 160Α = 14% 85Α = 60% 70Α = 100%

At 20^oC : 160Α = 60% 10 - 115Α = 100%

Weight = 4,2kg

MADE IN FRANCE

Automatic welding aids :

Default factory settings

HOT START : easier start

Anti Sticking : reduces the risks of electrode sticking in case of contact with the part

Arc Force : Adjusts the variations in the arc length

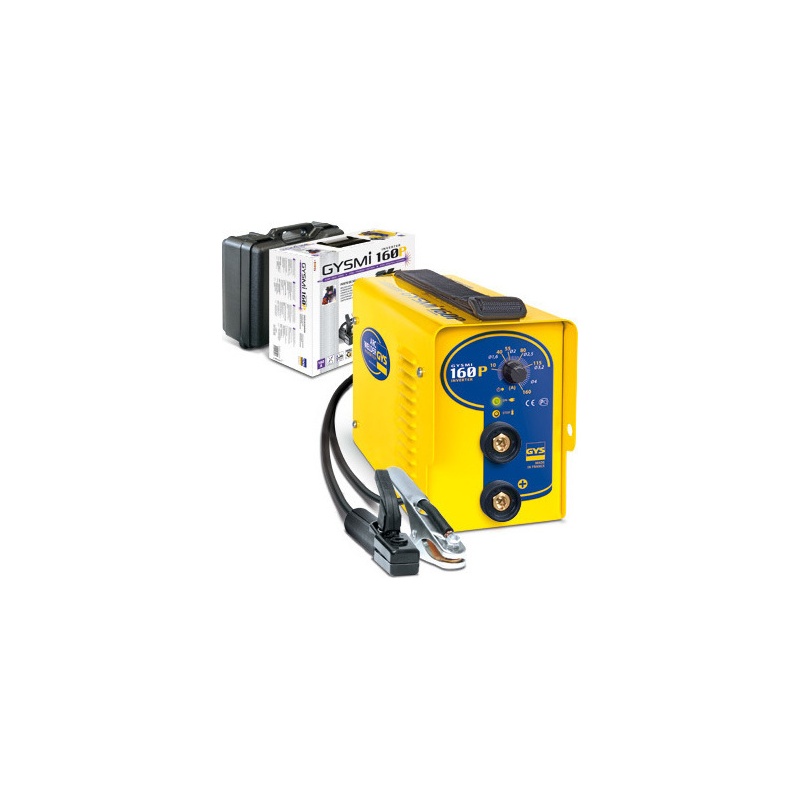

Standard Gear

• Electrode holder
• Earth clamp
• Wires
• Shoulder belt
• Plastic case
